280 SDK Platform Services

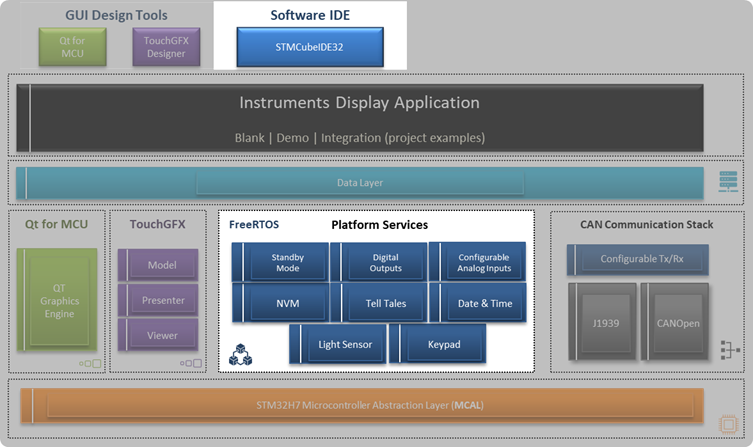

The 280 ST/QT-SDK includes configurable 280 Platform Services designed to support the target application. These services form part of the SDK’s middle layer, positioned above the MCAL layer, as shown in the diagram below:

SDK Platform Services

Configuration Overview

All Platform Services configuration options are defined in the 280_Config.h header file, located under the user_modify_files folder within the SDK project structure:

280_st/qt_sdk_xxx
¦     +---Core
¦     +---Drivers
¦     +---Middlewares
¦     +---tools
¦     +---TouchGFX
¦     +---user_modify_files
¦     ¦     280_Config.h           <------ 280 Platform Services configurations
¦     ¦     CANOPENData_Layer.h
¦     ¦     EE_PH_DB.h
¦     ¦     EE_User_define.h
¦     ¦     gen_define.h
¦     ¦     gen_pgn.c
¦     ¦     J1939Data_Layer.h
¦     ¦     j1939_datatype.h
¦     ¦     User_Define.h
¦     ¦     user_task.c

Purpose of the Configuration File

The 280_Config.h file allows developers to customize display-related settings for their specific application requirements. Examples of configurable parameters include:

  1. Input selection and mapping

  2. Display type and resolution

  3. Sampling rate

  4. Debouncing options

These settings apply regardless of whether you are using 280 ST-SDK or 280 QT-SDK.

Note: The configuration file only affects Platform Services. Customization of display screens, navigation, and overall look and feel should be performed using TouchGFX (for ST-SDK) or Qt Creator (for QT-SDK).

Applying Configuration Changes

To apply updates to the Platform Services configuration:

  1. Rebuild the SDK project using STM32CubeIDE.

  2. Reprogram the target unit with the newly built firmware.

Top Level Configuration Options

The following table lists the primary 280 Platform Configuration options:

Platform Configuration Name

Description

SDK_SERVICE_KEYPAD

Enables individual buttons-keys and overall keypad backlighting. Configures short-press timing with 10 ms resolution.

SDK_SERVICE_RTC

Enables the battery-backed Real-Time Clock for date and time tracking.

SDK_SERVICE_DIGITAL_OUTPUT

Configures each digital output as High-Side, Low-Side, or Open Driver. Also sets output update resolution in 100 ms increments.

SDK_SERVICE_LED

Provides configuration for platform LEDs (Red and Amber), including blinking rate.

SDK_SERVICE_CFG_INPUT

Enables and configures display analog inputs to read voltage, current, resistance, or frequency signals.

SDK_SERVICE_LCD

Allows configuring TFT LCD backlight settings.

SDK_SERVICE_PM

Power management and standby configuration.

SDK_SERVICE_WATCHDOG

Watchdog timer configuration.

SDK_SERVICE_POWER_MONITOR

Power monitoring configuration.

SDK_SERVICE_EEPROM

Configures NVM data size and update rate.

SDK_SERVICE_SWTIMER

Software timer configuration.

SDK_SERVICE_CANOPEN

Enables and maps the CiA 301 CANopen protocol stack to the CAN channel.

Note: Only one CAN Protocol stack can be mapped to the CAN channel.

SDK_SERVICE_J1939

Enables and maps the SAE J1939 protocol stack to the CAN channel.

Note: Only one CAN Protocol stack can be mapped to the CAN channel.

Note: Additional detailed configuration options, including dependencies on these top-level settings, are available in 280_Config.h.
