2. Product Specification¶
Processing |
|
|---|---|
Main Procesor |
Micro-controller based on ARM® Cortex®-M7 32-bit |
Internal Memory |
1 MB RAM, 2MB Flash |
External Memory |
16 MB, 64 KB EEPROM |
Display |
|
Type |
Premium TFT |
Size & Resolution |
2.8” diagonal, 240 x 320 pixels, IPS full view angle |
Color Depth |
18-bit RGB |
Contrast Ratio |
800:1 |
Brightness |
1000 NITS |
Interfaces |
|
Keypad |
4 button keypad, can be used to navigate or select menu items |
Connectors |
280 Instrument Display & 280b: 1 Deutsch DT06-08SA connector. |
CAN |
1 CAN, J1939, bit rate config. 5Mbps |
Inputs |
280 Instrument Display: 2 config. inputs |
Outputs |
280 Instrument Display: 1 config. output |
Power Supply |
12- and 24- volt systems, 9-32 VDC |
Warning Lights |
Amber/Red dead-fronted LED indicator |
Bluetooth |
280b Instrument Display: For wireless configuration |
Software |
|
Operating System |
Optimized Free RTOS based on MIT’s open source standard |
Application Software |
Freely programmable toolchains, primarily programmed via GNU C/C++ and supports application modules and library additions, JTAG/serial wire debugging |
Environment |
|
IP Class |
IP67 (front and rear) |
EMS Compliance |
ISO 13766-1: 2018 and ISO 13766-2: 2018 |
SAE Standard |
Vibration, UV, salt spray and chemical compatibility |
Temp. Range |
-20 to 70ºC (operational), -30 to 80ºC (storage) |
Casing |
|
Housing Material |
Black PC/ABS plastic, UV resistant |
Clear Lens Material |
Tempered glass |
Mech. Installation |
Flush/panel mounting, SAE 3⅜” standard |
WxHxD (in/mm) |
ø104.4mm [4.11”]X 58.55mm[2.30”] |
Weight (oz/g) |
7.27oz/206g |

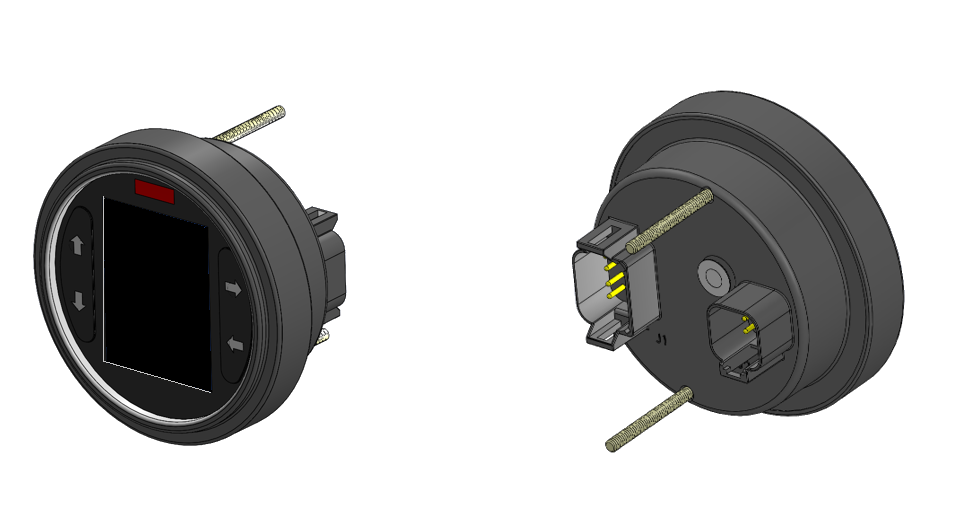

Figure 1
